Managing Buildings

Select from the following to manage building records:

Opening a Building Record

To open a building record:

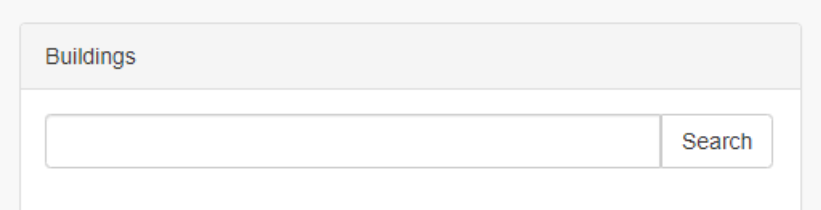

  • Search for a building in the Buildings panel on the Dashboard.

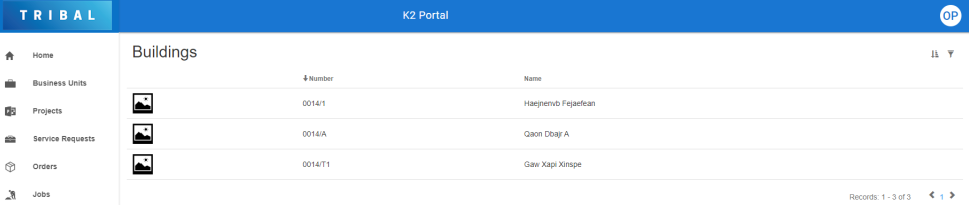

  • The Buildings screen is displayed, which displays the relevant results.

  • Click the relevant building record to open it.

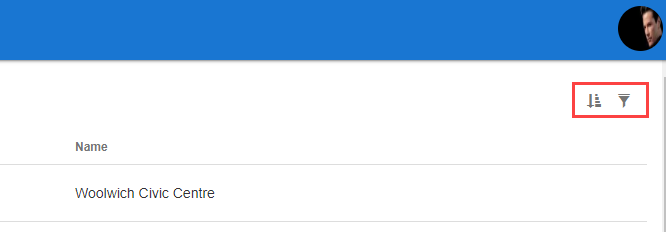

You can filter the results further, if required, by using the Sort and Filter buttons in the top right-hand corner.

Viewing Building Details

The fields on the Building Details screen are described in the following table:

This field…

Holds this information...

Business Unit Name

The business unit to which the building belongs.

Building Description

A description of the building.

Is Part Of School

Whether the building is part of a school.

Is Temporary

Whether the building is temporary (that is: not a permanent structure).

Application Resource

Whether people can apply to use the building for a specific purpose.

Comment

Any comments on the building.

Physical

The building's physical address.

Postal

The building's postal address.

Invoice

The building's invoice address.

Trade

The building's trade address.

Net Area

The net area of the building.

Floor Area

The floor area of the building.

GIA

The gross internal area of the building. Refer to the GOV.UK website for further information.

GEA

The gross external area of the building. Refer to the GOV.UK website for further information.

Year Built

The year the building was built if known.

Year Built Estimated

The estimated year the building was built, if the Year Built is unknown.

Life Remaining

The anticipated life expectancy of the building.

Recording Data Accuracy

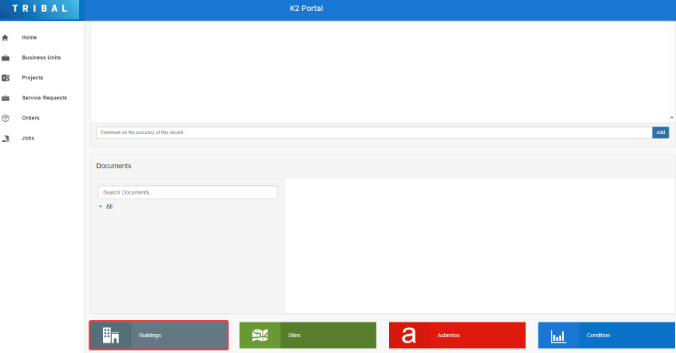

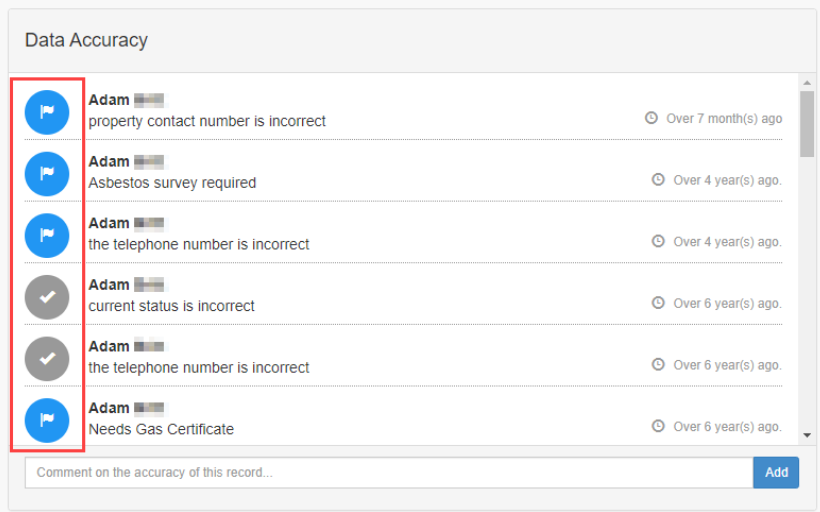

If the Enable Portal RCI Event option in Portal Options (accessed by navigating to Tools > System Options and then clicking the Portal Options button) is set to True, the Data Accuracy panel is displayed. Live issues are marked with a flag, while resolved issues are marked with a tick.


You can raise potential data inaccuracies by entering a comment and clicking the Add button.

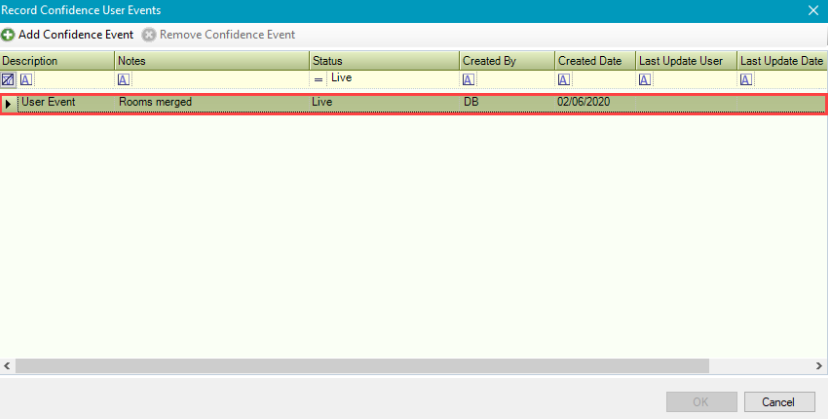

This creates a record in the Record Confidence Indicator in K2 with an Application Name of 'Portal'.

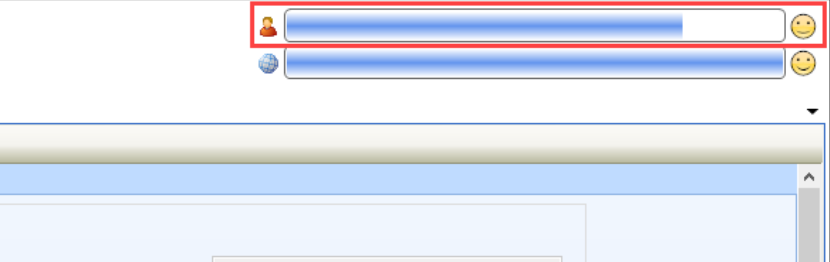

It also reduces the user confidence level by one-sixth.

Viewing Reports

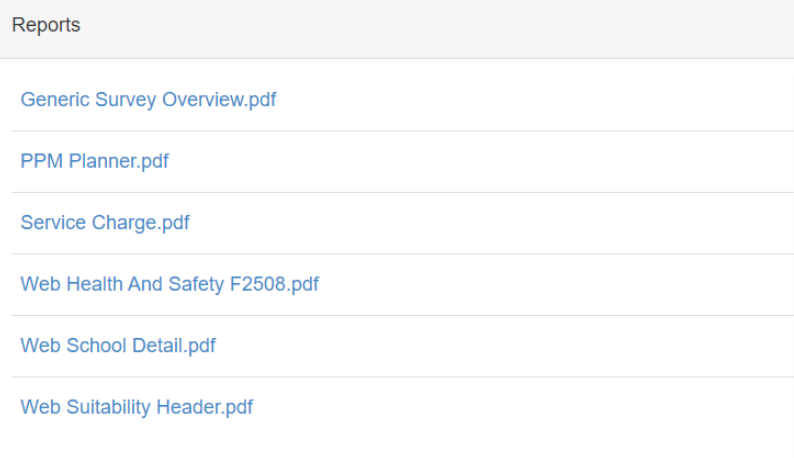

You can use the Reports panel to generate reports related to the selected record by clicking on the relevant header. They are displayed in PDF format.


The reports that are available to generate are defined in the Portal Report Publisher in K2 (accessed by navigating to Report > Publishing > Portal Report Publisher).

Managing Documents

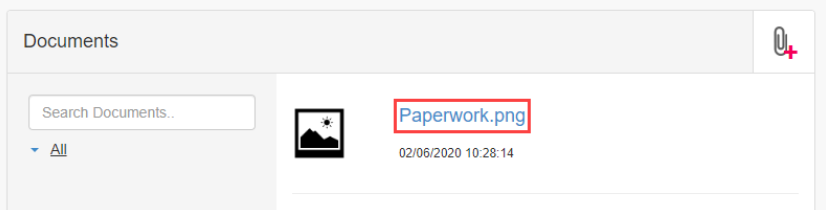

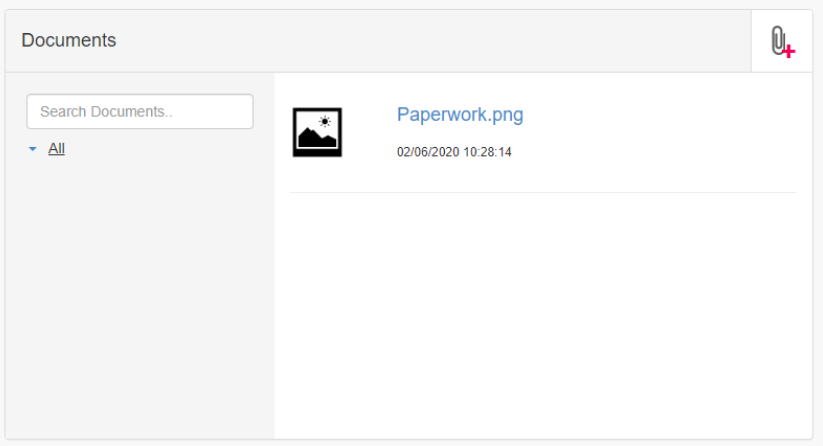

The Documents panel lists all documents attached to the record.

The document protection level set against their user record limits the user's view of documents. There are three levels – Public, Restricted and Confidential. If a user is set to 'Restricted', they cannot view confidential documents.


Use the panel to do the following:

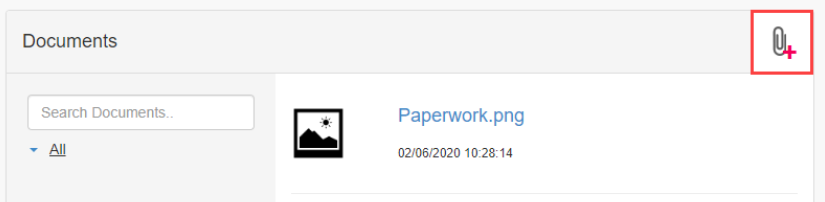

  • Click the Add Document button to upload a new document.

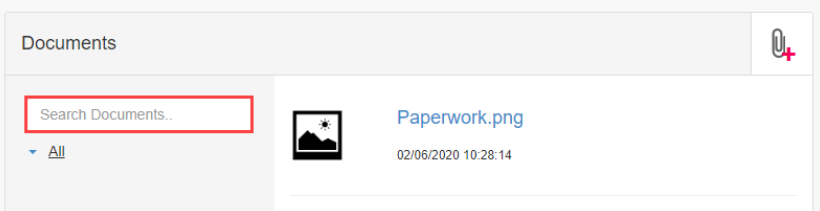

  • Use the Search Documents field to locate an existing document.

  • Click a document file name link to open the file.

Viewing Condition Details

Condition records can be opened from any location record.

To open a condition record:

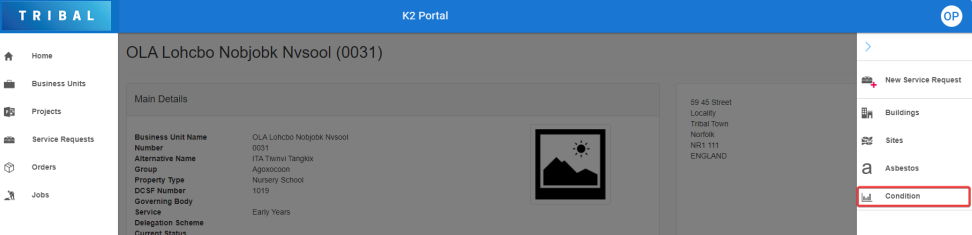

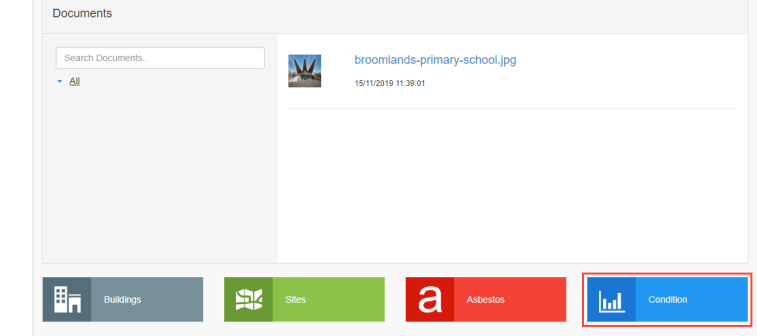

  • Click the Condition button in the right-hand panel when a location record is open.

  • Click the Condition button at the bottom of the location record.

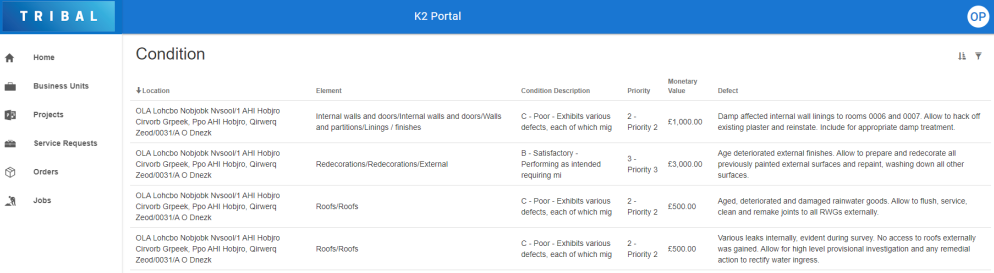

  • The Condition screen is displayed, which lists all of the condition records for the selected location.

  • Search for and select the relevant condition record.

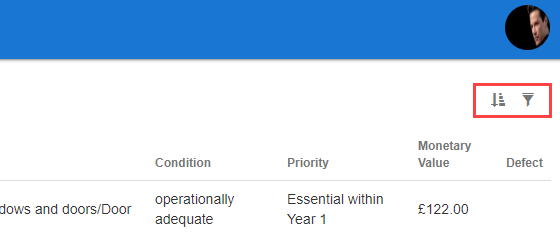

If required, use the sort and filter options in the top right-hand corner of the screen to sort or narrow the results.

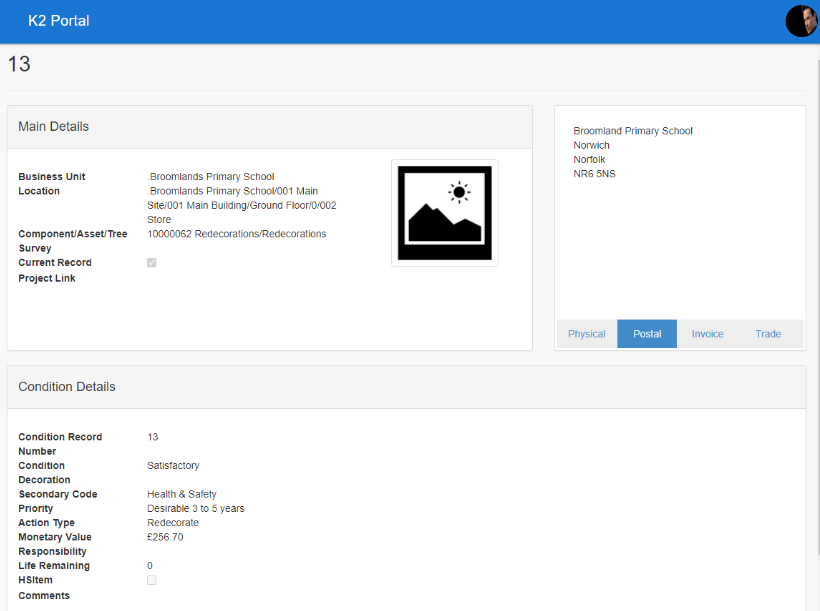

  • The condition details screen is displayed.


The fields on the Condition Details screen are described in the following table:

This field…

Holds this information...

Business Unit

The business unit to which the item belongs.

Location

The location of the item.

Component/Asset/Tree

The component, asset or tree to which the condition relates.

Survey

The survey to which the condition relates.

Current Record

Whether this is a current condition record.

Project Link

A project reference which has been manually entered into K2.

Physical

The physical address of where the condition item is located.

Postal

The postal address of where the condition item is located.

Invoice

The invoice address of where the condition item is located.

Trade

The trade address of where the condition item is located.

Condition Record Number

The record number for the condition.

Condition

The condition status of the item surveyed.

Decoration

The condition status of the decoration.

Secondary Code

An additional code to further define the priority of the condition record.

Priority

The priority of the item being surveyed.

Action Type

The action required for the condition item.

Monetary Value

The value of the condition item.

Responsibility

The party responsible for the condition of the item.

Life Remaining

The number of years remaining that the item has in its current condition.

HSItem

Whether the item is a health and safety item.

Comments

Any comments on the condition item.

Viewing Service Request

Service Requests linked to a Building and Building Locations can be viewed from a record.

To view a service request:

  • Open the Building record that the service record is linked to.

Do one of the following:

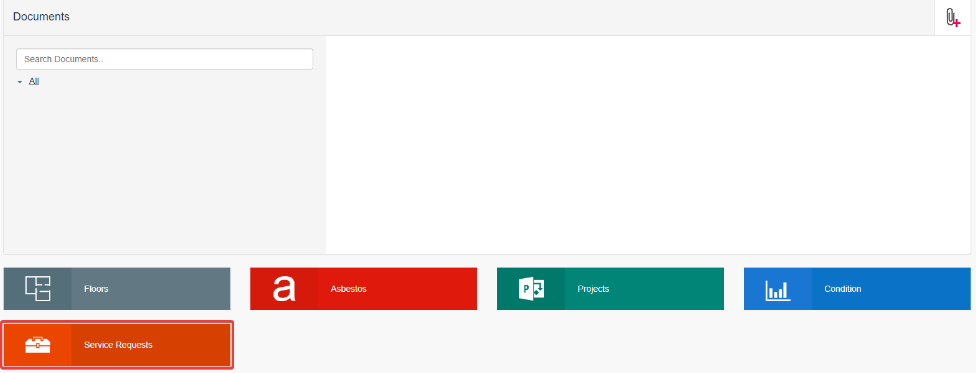

  • Click the Service Requests button at the bottom of the screen.

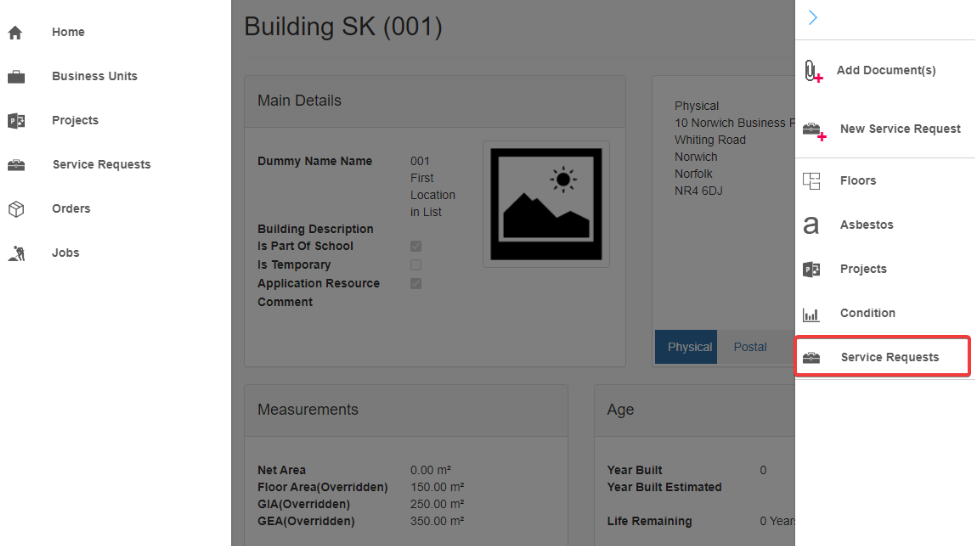

  • Click on Service Requests on the right-hand panel.

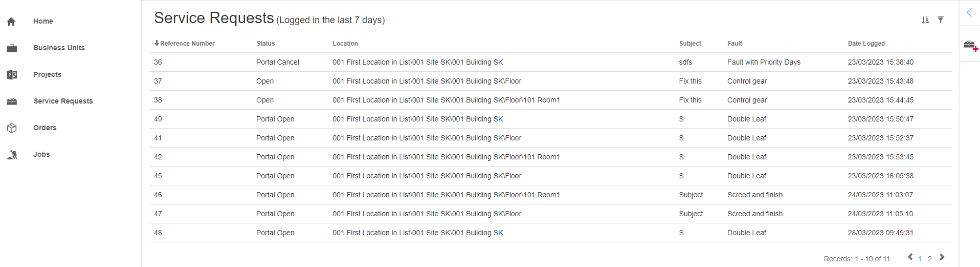

  • Check that the Service Requests grid has opened.


The number of requests displayed and days shown can be set to between 1 and 30 in Portal Options > Service Request Maintenance > Location Service Request Grid Limit (days) setting.

A new service request record can be created by raising a Service Request against an existing Building record.

To create a new service request refer to Manage Service Request for further information.

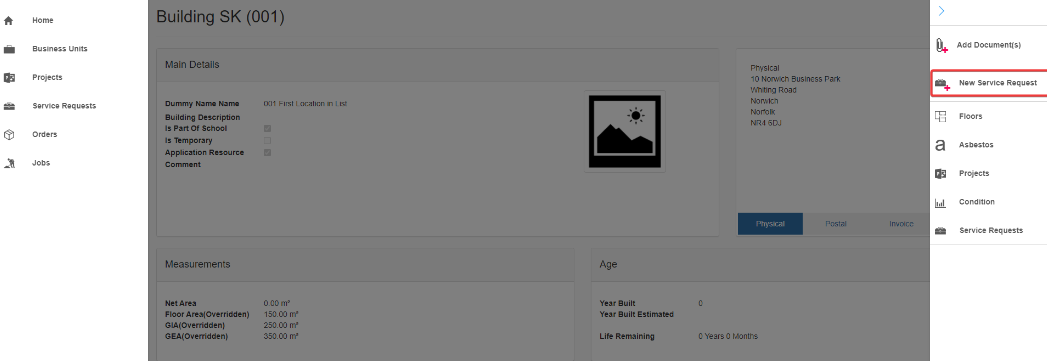

To add a new service request from a building record do one of the following:

  • Click on New Service Request on the right-hand panel.

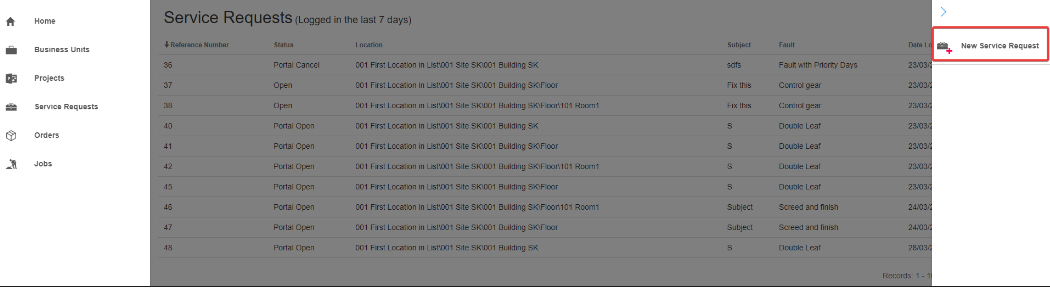

  • Click on New Service Request from the grid page in the right-hand panel.

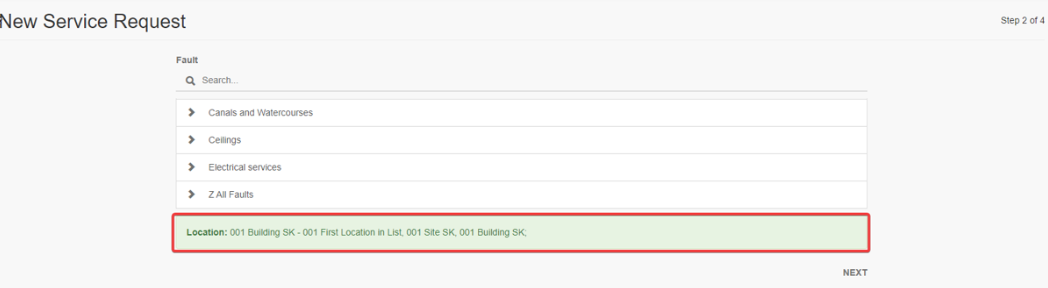

A New Service Request fault page is opened with the building name and location populated.


The location displayed is linked to the building record and is now associated with the new service request.

To close or cancel a service request refer to Managing Service Requests and scroll down to Close or Cancel a Service Request for further information.
